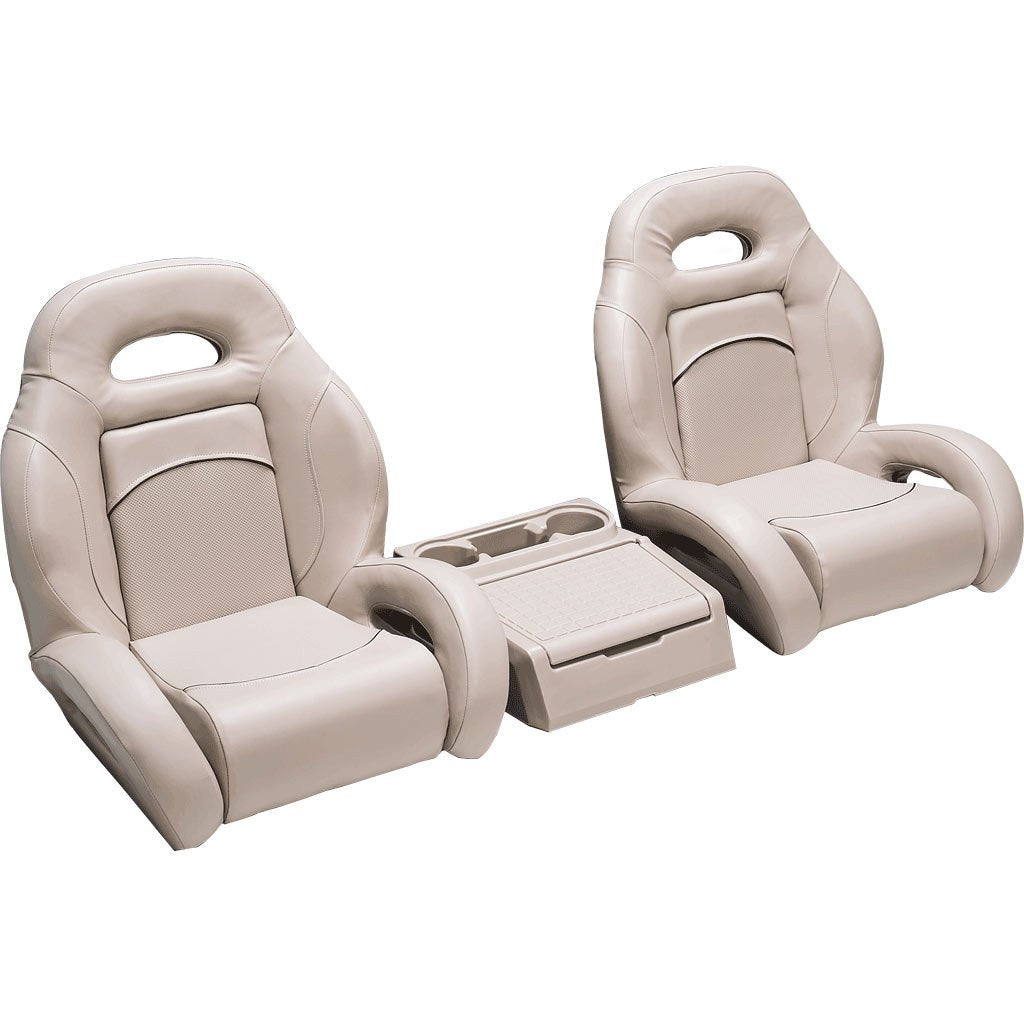

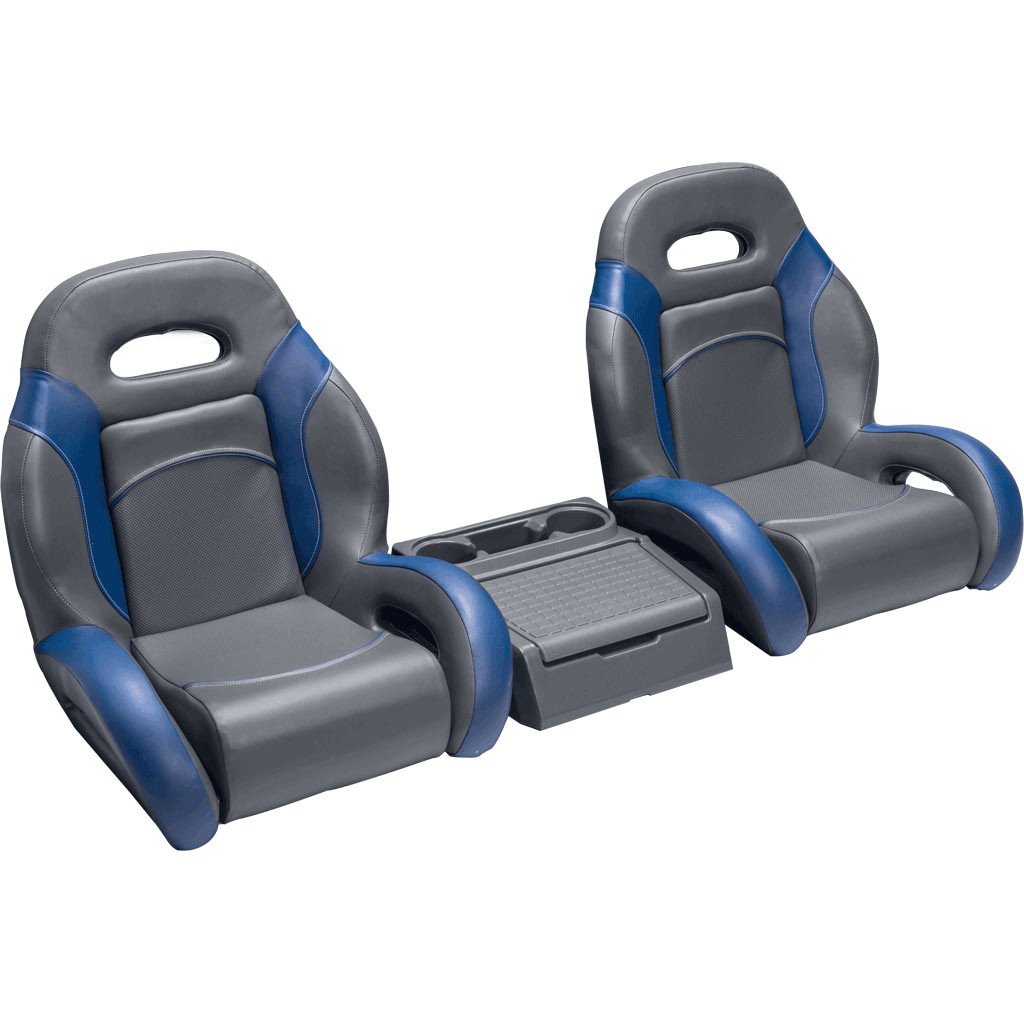

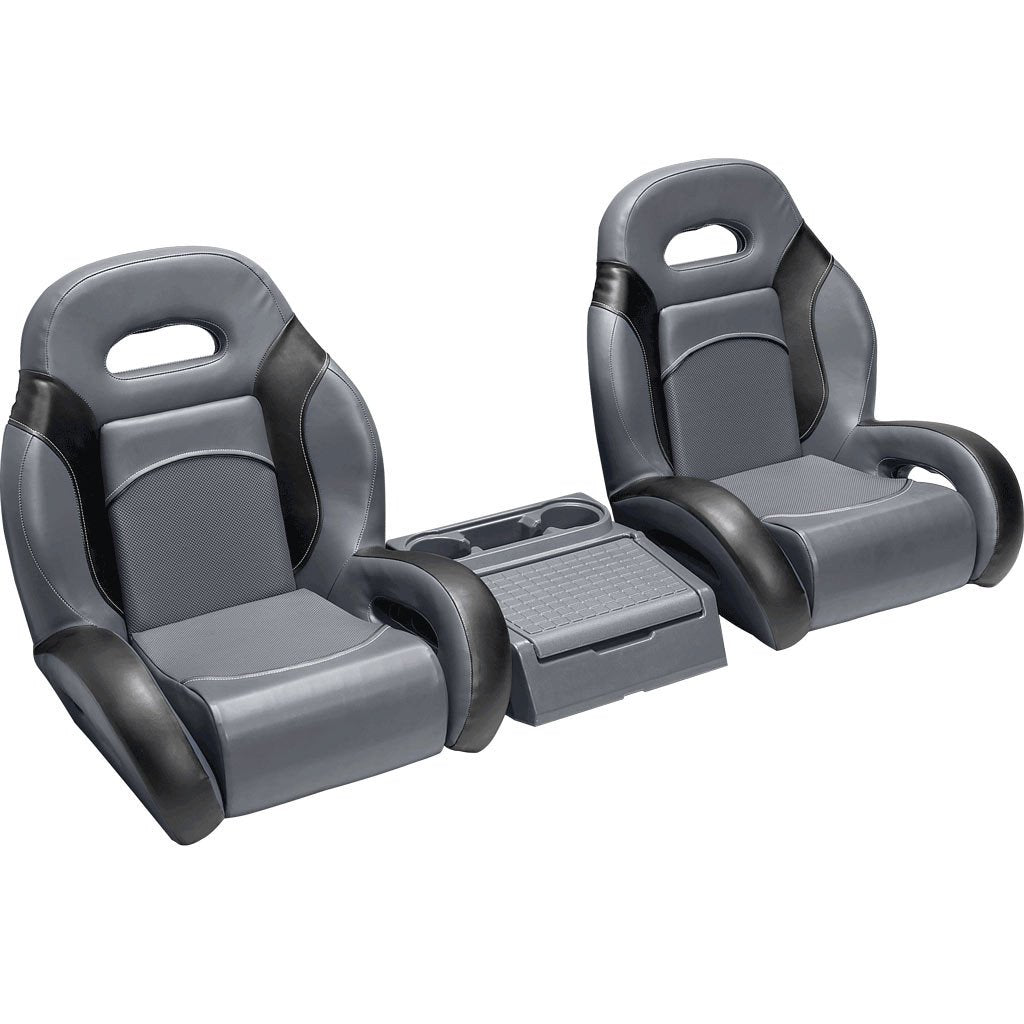

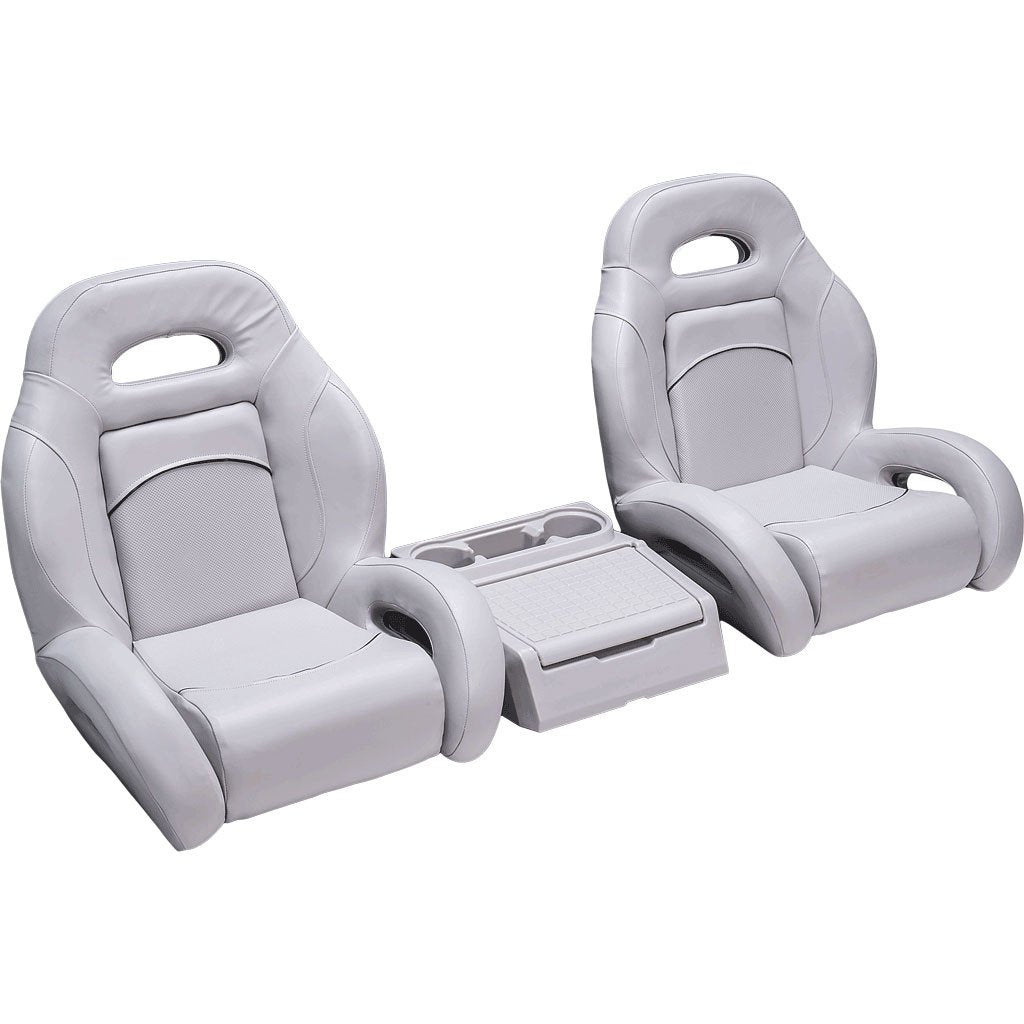

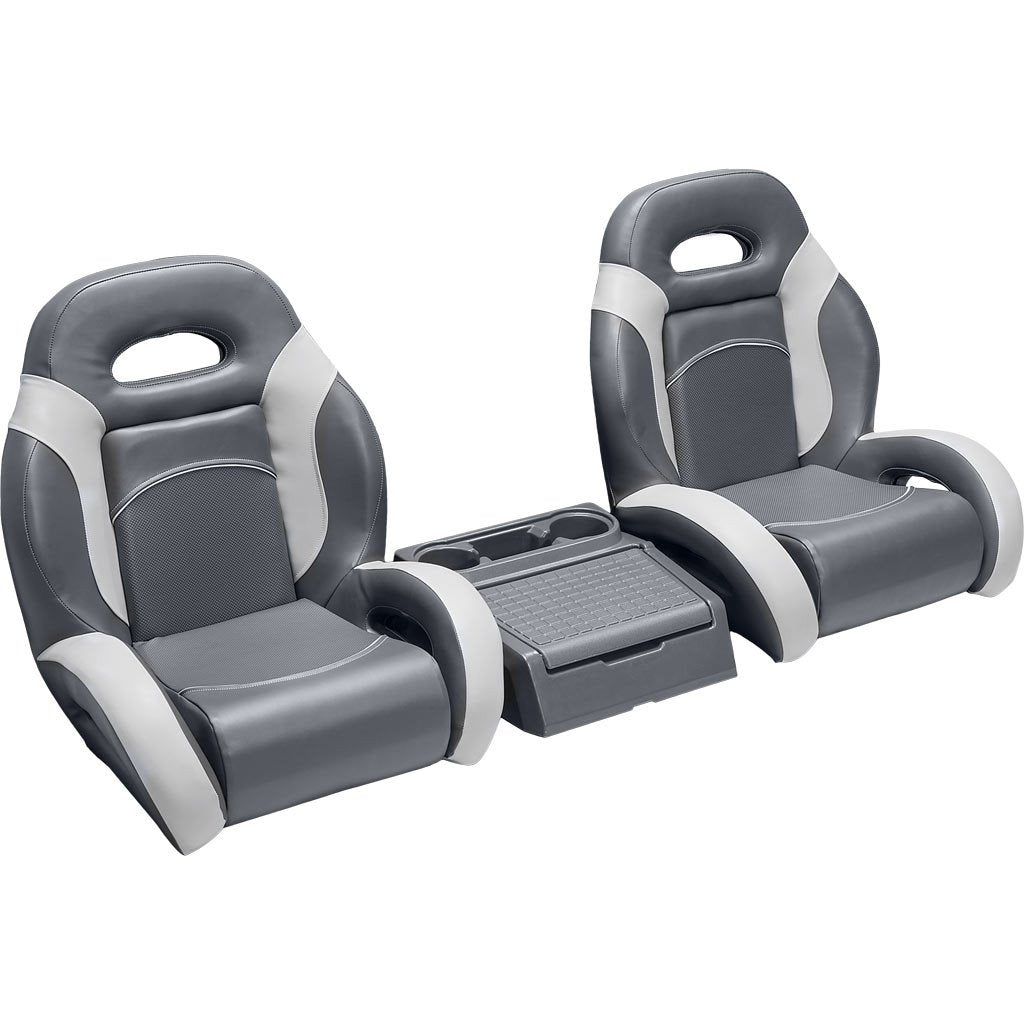

High Back Bucket Seats w/ Console

22" wide bucket boat seats with 17" wide center storage console and step. You will need 64" across your seating platform to install these bass boat seats.

• Factory grade bucket seats with removable back and seat bottom cushion for installation.
• Solid, single piece rotationally molded plastic shell makes these seats indestructible.
• Bolt down to install on platform.

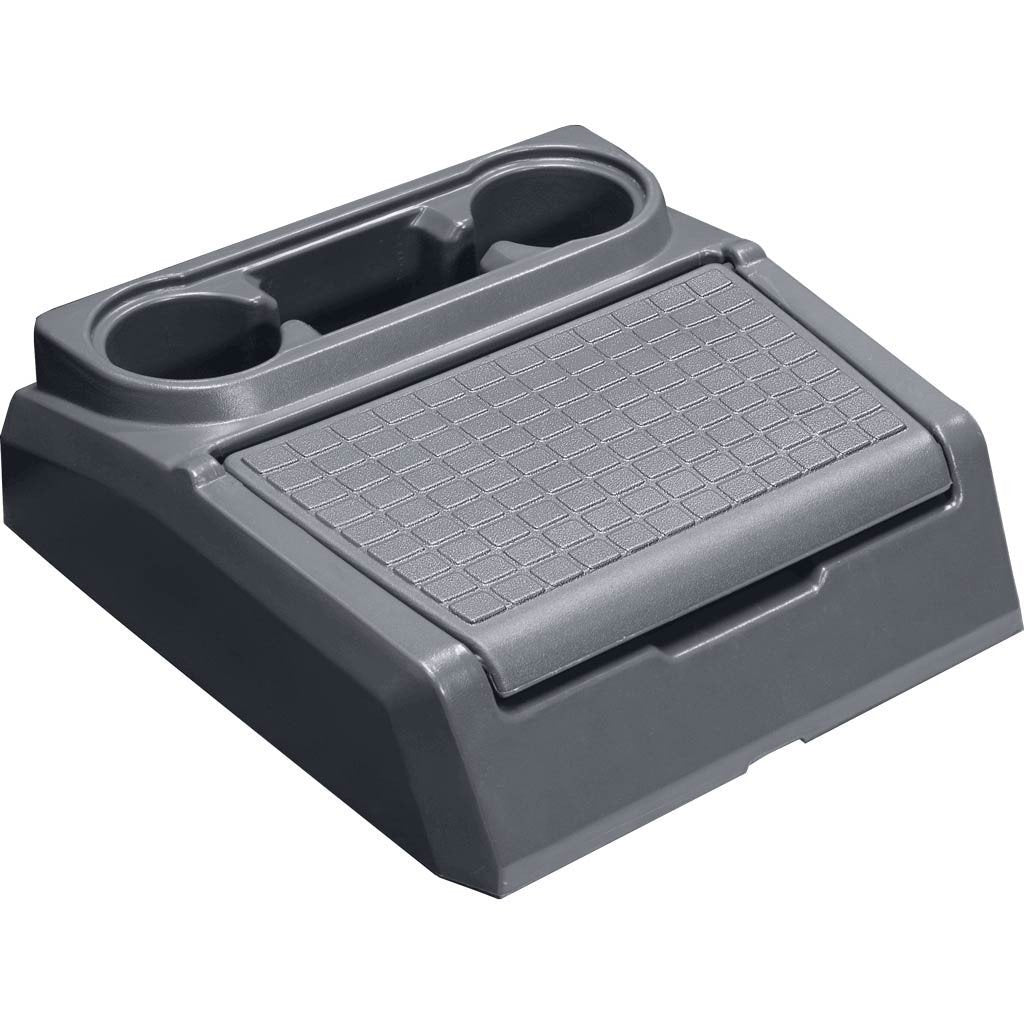

17" wide center storage console is a true step.

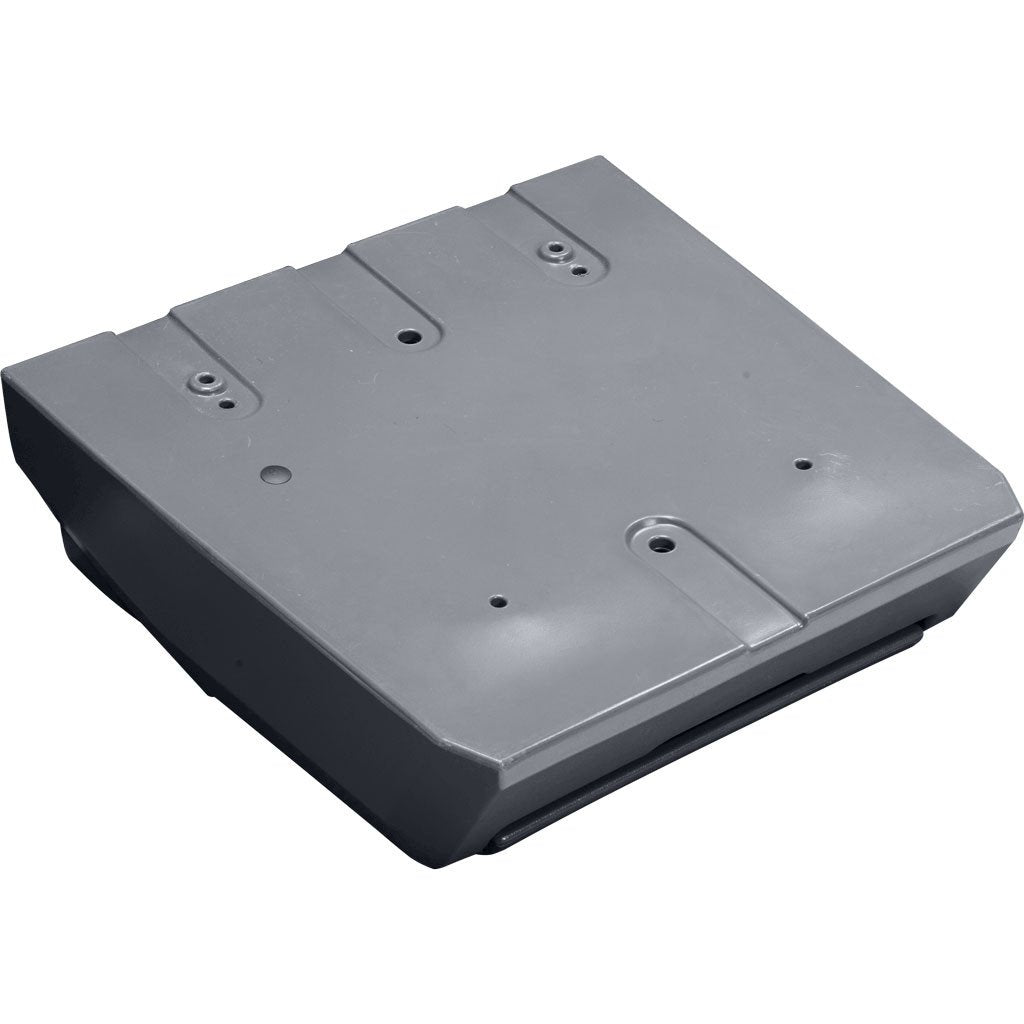

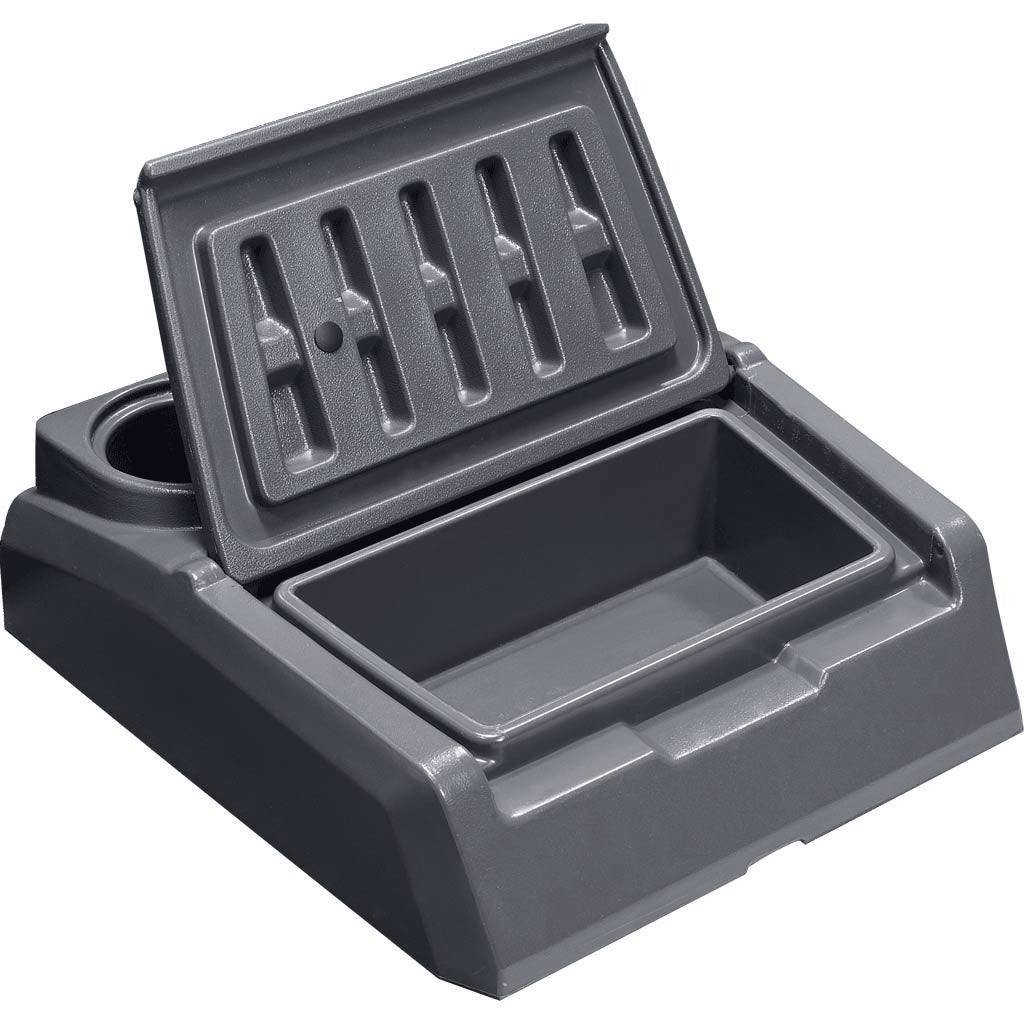

• Center storage console features cup holders with storage bin and enclosed storage underneath the step.
• Made from Teflon coated, heavy duty rotationally molded plastic it comes with a lifetime warranty.
• Built to be a true step, the lid to the enclosed storage area will support any angler.

Protect your investment with our DeckMate Seat Cleaner and Protectant

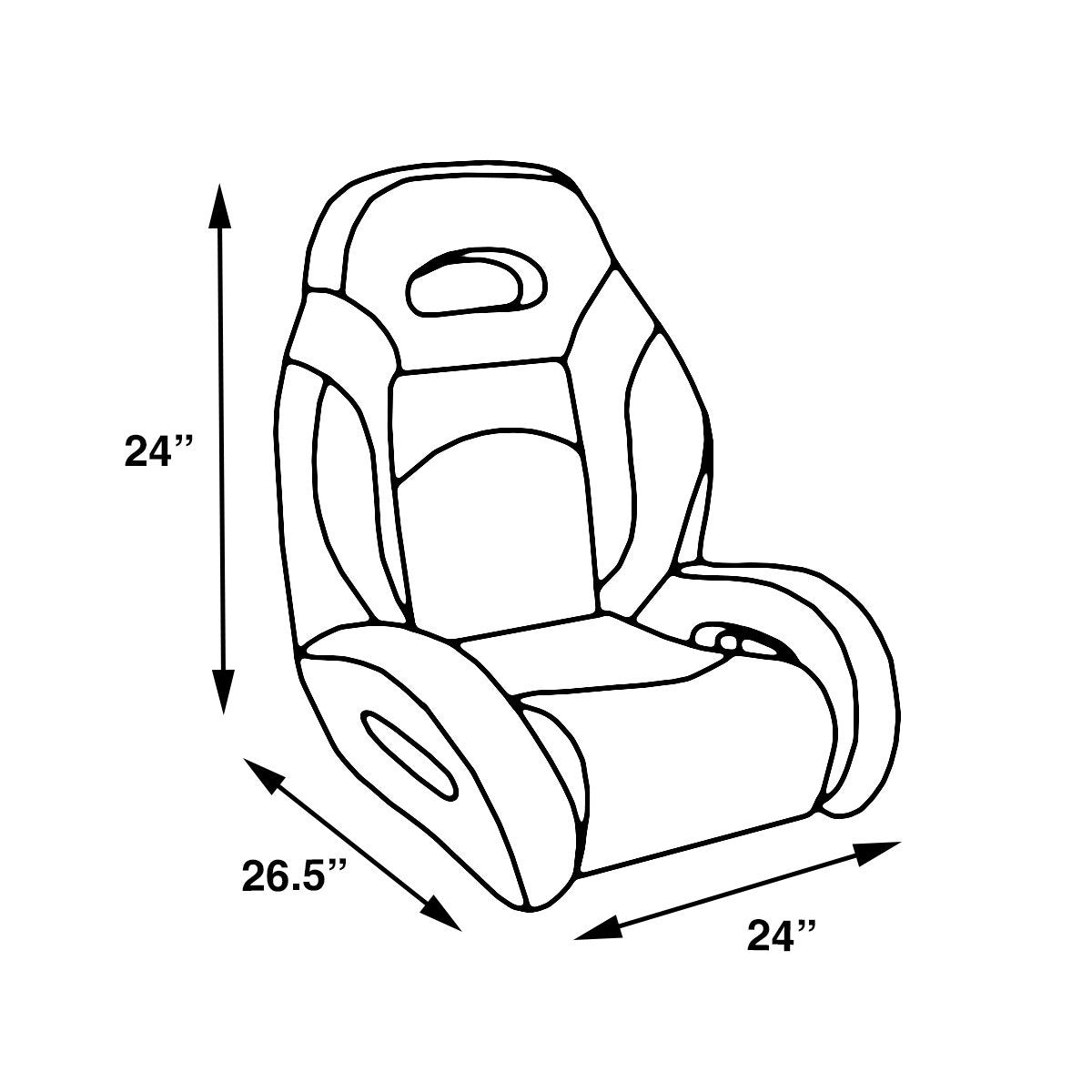

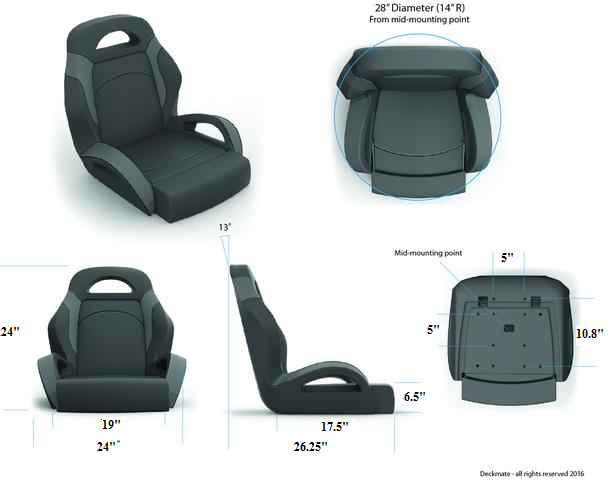

Seat Dimension

Installation

Installing Your Boat Seats

Hardware Included:

1. (8) Stainless steel mounting bolts pre-installed into t-nuts located on the bottom of the seat frame.

Note: DeckMate Bass Boat Bucket Seats Bolted Or Screwed Down To Your Seating Platform.

Screw Down Installation:

1. Ensure that there is not a fuel tank located beneath your seating platform.

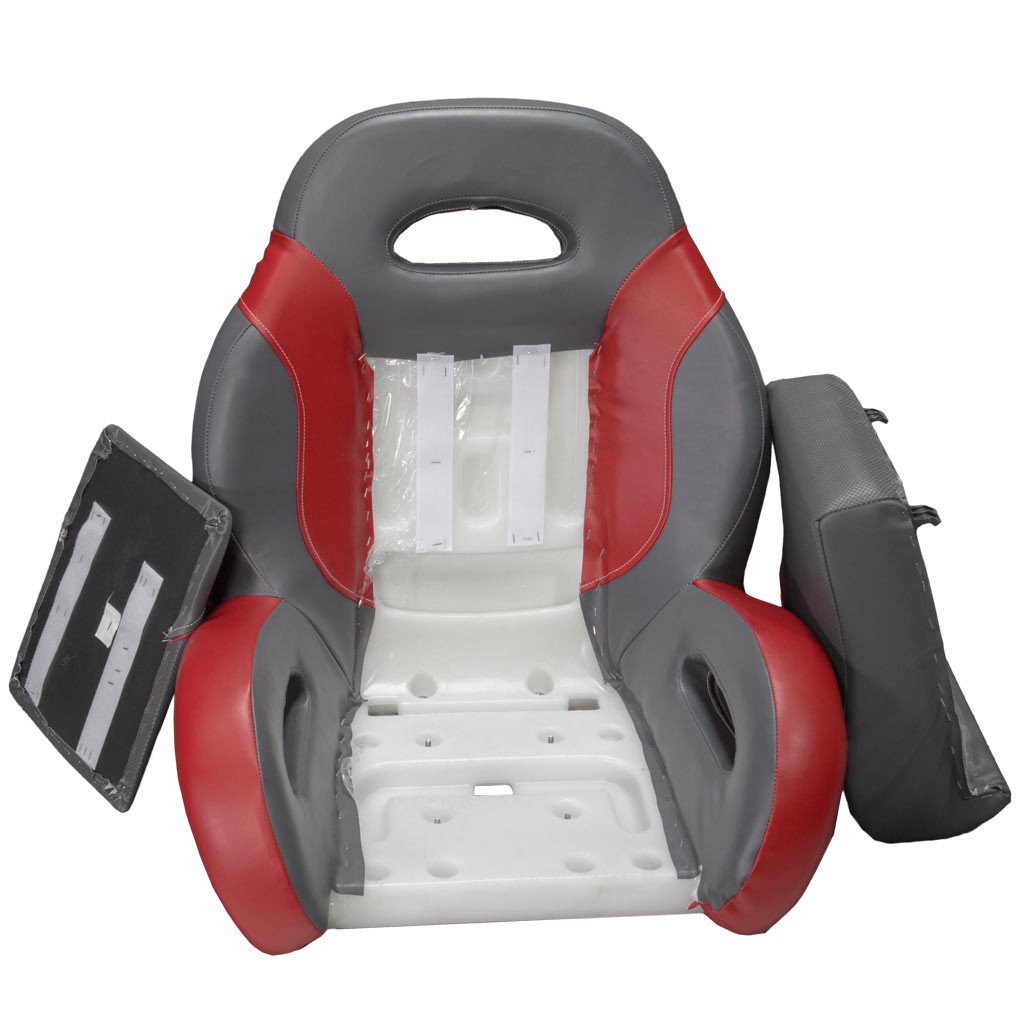

2. Remove each bucket seat's cushion by locating and removing the two bolts that are on either side of the bottom frame of each bucket. 3. Once these bolts are removed you can pull the seat cushion off of the plastic frame. There are strips of industrial Velcro that also hold the cushion in place, pull hard on the seat cushion once the bolts are removed and it will come off. 4. Place each bucket seat in the mounting position. There are two opening in the seat frame (one on each side) that allow you to use a screw and washer to connect the bucket to your seating platform. 5. Install the bucket seat cushion by placing it back into the opening and pressing hard to secure the Velcro, this will hold the seat in place.

Bolt Down Installation:

Note: For those boats with lids that hinge forward you can bolt the bucket seats to your seating platform.

1. Located on the bottom of each bucket seat are (4) stainless steel bolts that are pre-installed into t-nuts that are built into the plastic frame of each bucket seat. 2. Remove these stainless bolts and place the bucket seat into the position you wish to mount it. Determine the mounting location and pre-drill holes through your lids. 3. Install the mounting bolts through your boat's lids and into the t-nuts located on the bottom of each bucket seats plastic frame.
